Parts needed:
1. 94-01 Integra Cold Air Intake system ususally found on ebay for about $30.00 shipped, here is a picture:
*Note I modified the picture to show you where to cut the S-pipe for the front section of the intake setup.
2. You will need a Heat Shielded Filter, they come in different colors so the choice is yours. Mine was a Chrome cover. Just ditch the filter that came with the kit. Unless you want to swap it out during winter for your cool sound.
3. Then you need to go to a hardware store to purchase a 4" to 3" coupler adapter. They will come with the metal fasteners already attatched to them. And you will will find them in the Plumbing section of the hardware store.
Like so:
And that will be all the parts you need.
Instructions:
1. Take the S-pipe that came with the Integra CAI kit and cut it in the middles like the top pictures shows.
2. Install the rest of the kit, which by now should be pretty obvious.
3. Take the 4" to 3" Coupler and attach it to the front of the filter and then take the cut S-pipe and attach tot he front of the coupler and face the open end of the S-pipe toward the Factory intake hole on the passenger side headlamp assembly.
4. Your done!!! Enjoy!!!
Also the nice thing about this setup is that during the winter you can just pull the front section off of the system to make it a short ram for that nice sound the short rams make, and the difference in temperature during winter should not hurt you as much as it does during summer.
And you will not have to worry about water getting into the system. Unless, you submerged that section of your Lude into a lake or something.

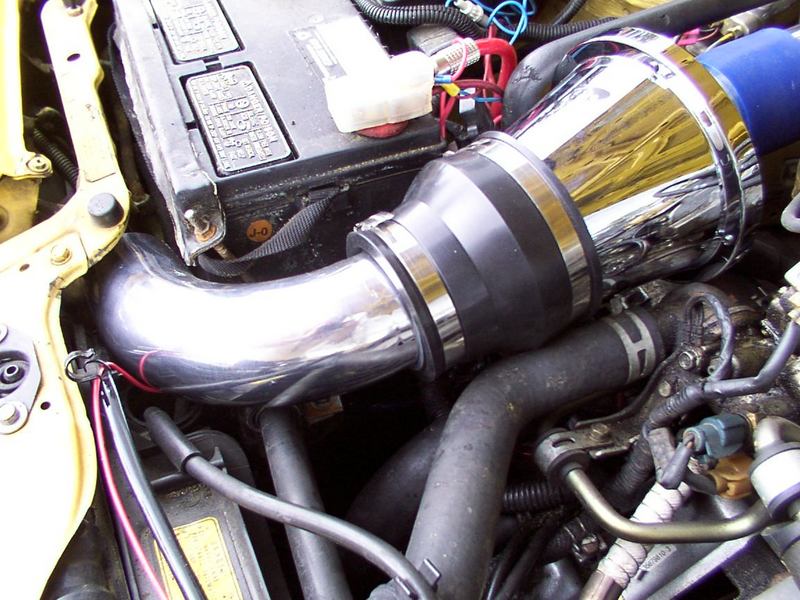

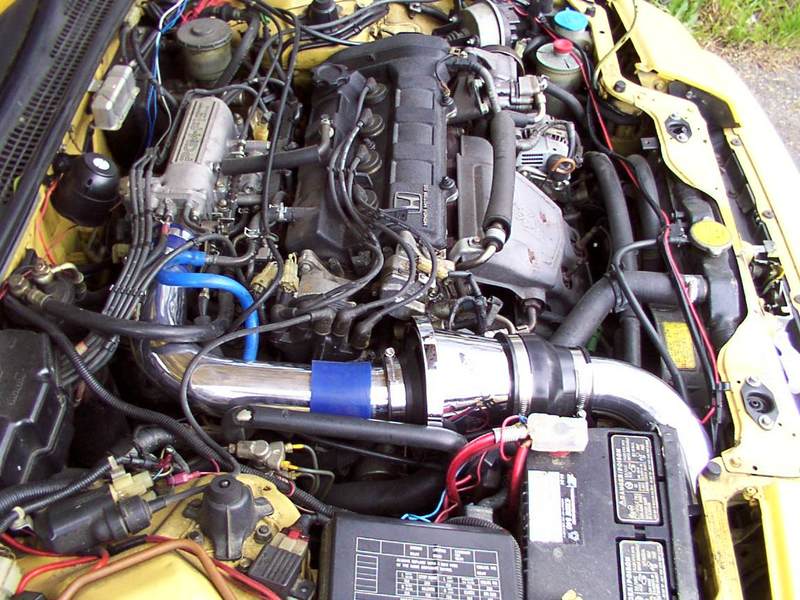

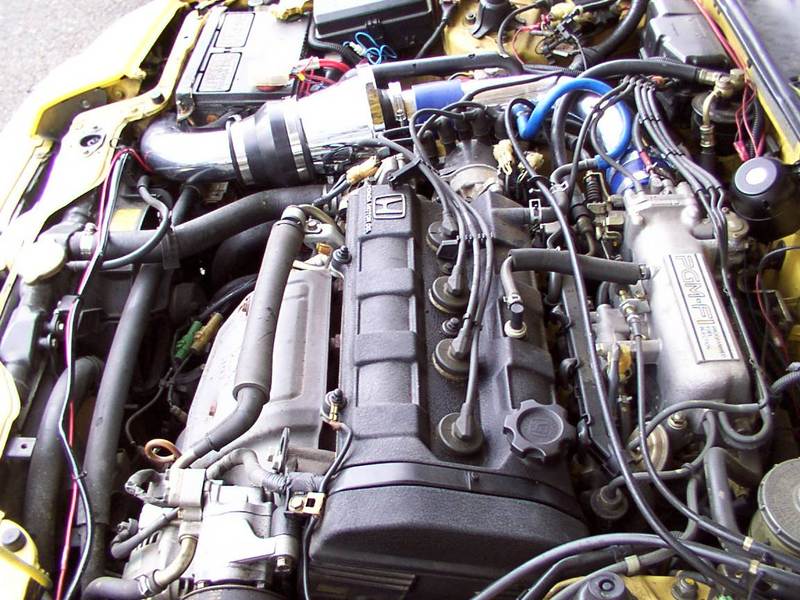

It will look like this:
